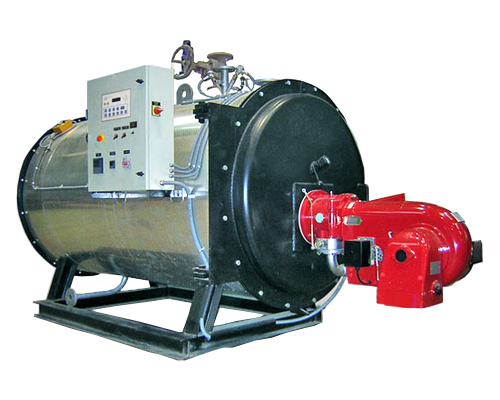

Hot Water Generators Oil/Gas Fired

Heatex Hot Water Generators are with Smoke Tube Horizontal/Vertical Package design with a choice of fuel- oil/gas, Fully Semi Automatic operational features. The hot water generators are manufactured as per latest Indian/international standards with Class I workmanship and prompt after seals service.

The boilers are fitted with high combustion efficiency fuel firing equipment resulting in optimum thermal efficiency to achieve economical cost of generating hot water. Heatex also offers equipment: Air pollution control system flue gases & fuel handling system, water treatment plants etc.

Heatex other products are Steam boilers suitable for oil / gas / coal wood, Electric hot water generators, thermic fluid heating system, incinerators, Calorifiers, Heat Exchangers and other boiler house ancillaries and accessories.


Technical Specifications

S. No Boiler Model HEW-10 HEW-20 HEW-30 HEW-40 HEW-60 HEW-80 HEW-100 HEW-120 HEW-150
1. Heat Output K.CAL/HR 1,00,000 2,00,000 3,00,000 4,00,000 6,00,000 8,00,000 10,00,000 12,00,000 15,00,00
2. Hot Water Outlet N1 40mm. 40mm. 50mm. 50mm. 80mm. 100mm. 100mm. 100mm. 150mm.
3. Hot Water Return N2 40mm. 40mm. 50mm. 50mm. 80mm. 100mm. 100mm. 100mm. 150mm.
4. Cold Feed N3 25mm. 25mm. 40mm. 40mm. 50mm. 50mm. 50mm. 50mm. 50mm.
5. Safety Valve N4 25mm. 25mm. 25mm. 25mm. 25mm. 40mm. 40mm. 40mm. 40mm.
6. Blow Down Valve N5 25mm. 25mm. 25mm. 25mm. 25mm. 40mm. 40mm. 40mm. 40mm.

Over All Sizes (In mm)

Length (A) 2100 2400 2700 2900 3250 3400 3700 4100 4500
Width (B) 1400 1600 1700 1750 1850 2100 2200 2300 2400
Height (C) 1700 2350 2400 2450 2500 2600 2700 2900 3000
Fuel Gas Outlet (D) 200 250 275 300 350 400 450 500 550
Foundations Width (E) 900 1500 1550 1600 1700 1900 2000 2100 2200
Foundations Length (F) 1500 1800 2100 2200 2600 2800 3100 3000 3800
