Steam Generators Oil / Gas Fired

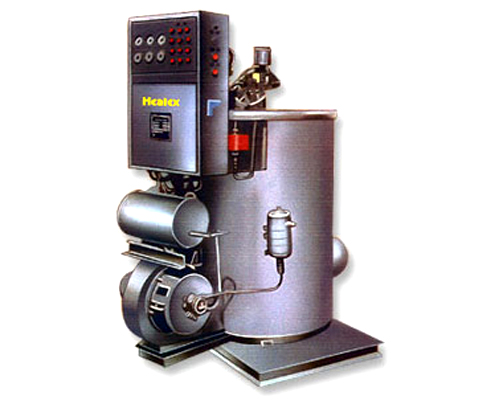

Heatex Instant Steam are of multi pass coil type Vertical Fully Automatic design with proven performance. The Boilers are outside the purview on India Boiler Regulations. The boilers are fitted with high Combustion efficiency flue equipment resulting in optimum thermal efficiency to achieve economical running cost of the boilers.

The range of the product makes the selection to the nearest size of equipment to save on Capital cost. Heatex also offers optional equipment: Air Pollution Control System. Fuel gases and fuel handling systems. Water Treatment plants etc.

Heatex other products are Hot Water Generators suitable for Oil/gas/Coal/Wood Husk firing. Electric Hot Water generators. Thermic fluid heating system. Incinerators Calorifiers. Heat exchangers and other boiler house ancillaries and accessories.


Technical Specifications

Model HE-S20 HE-S30 HE-S40 HE-S50 HE-S60
Steam Output F&A 100°C (Kg/hr) 200 300 400 500 600
Steam Pressure (kg/cm2) 10.5/14.0 10.5/14.0 10.5/14 10.5/14.0 10.5/14.0
Steam Temp. (Deg. C) 185/205 185/205 185/205 185/205 185/205
Thermal Efficiency on NCV 90% 90% 90% 90% 90%
Overall Dimensions Base Size (mm) 1200 x 1200 1200 x 1200 1400 x 1400 1500 x 1500 1600 x 1600
Height (mm) 1500 1600 1800 1800 2000
Feed Water Motor Pump (HP) 0.5 0.75 0.75 1.0 1.0
Blower Motor (HP) 0.75 0.75 1.0 1.5 1.5
Oil Pump Motor (HP) 0.25 0.25 0.5 0.5 0.5
Flue Gas Outlet (mm) 150 150 200 200 250
Steam Stop Valve (mm) 20 20 25 25 25
Feet Water Inlet (mm) 20 20 25 25 25
Blow Off Valve (mm) 20 20 25 25 25
Safety Valve (mm) 20 20 20 25 25
